TRUCK CRANE XCMG Official 30 Ton Rough Mobile Terrain Crane XCR30 Hydraulic Lifting Crane

1.0 Units
MOQ
$1,000,000.00(1 - 4 Units) $10,000.00(>=5 Units)
Preis
TRUCK CRANE XCMG Official 30 Ton Rough Mobile Terrain Crane XCR30 Hydraulic Lifting Crane
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Feature: TRUCK CRANE
Showroom Location: United States, Brazil, India, Russia
Condition: New
Application: construction
Rated Loading Capacity: 30Ton
Rated Lifting Moment: 989.8 kn.m
Max. Lifting Height: 42.2m
Span: 6.8m
Warranty: 1 Year
Hydraulic Cylinder Brand: Top brand
Hydraulic Pump Brand: Top brand
Hydraulic Valve Brand: Top brand
Engine Brand: Top brand
UNIQUE SELLING POINT: Environmental,Energy-saving,Large power engine
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Wheel Base: 3600mm
Wheel Track: 2300/2300mm
Applicable Industries: Manufacturing Plant, Farms, Construction works , Energy & Mining
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, C
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Zertifizierung: CE/ISO9001
Grundinformation
Zertifizierung: CE/ISO9001
Zahlung und Versand AGB
Packaging Details: Comply with export packaging requirements
Supply Ability: 10000 Unit/Units per Year
Produkt-Beschreibung
Products Description

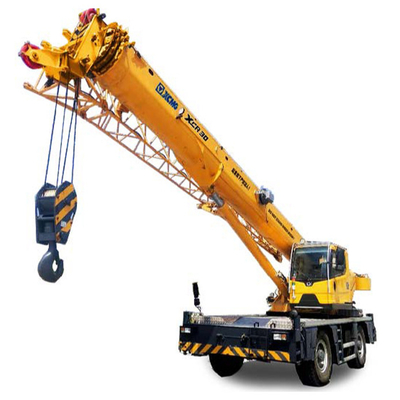

XCMG official 30 ton rough terrain crane XCR30 mobile hydraulic lifting crane

1. The total rated loads given in the rated load charts are the maximum lifting capacity when the crane is set up on firm and level ground, which includes the weight of the hook block and slings. The weight of above-mentioned devices should be deducted from the rated lifting load.

2. The working radius shown in the rated load charts is the radius when the load is lifted off the ground, and it is the actual value including loaded boom deflection. Take boom deflection into consideration before beginning a lifting operation.

3. A lifting operation is permissible only when the wind force is below grade 5 (instantaneous wind speed is 14.1 m/s, wind pressure is 125 N/m2).

4. Before beginning lifting operation, the operator should know the weight of the load to be lifted and its working range, and then select proper working conditions. Never operate the crane beyond the limit shown in the chart. Use the lower value from the chart when the boom length or working radius is between the range of values.

5. Observe the boom angle limit. Never operate the crane with the boom angle beyond the recommended limit even if a load is not being carried. Otherwise, the crane will tip.

6. The boom should be extended according to the telescoping code shown by digits, which means the percentage of boom sections extended.
Product Paramenters
Project
Unit
Parameter
Measurements Parameters
Wheel Base
(mm)
3600
Wheel Track
(mm)
(Front/Rear)2300/2300
Weight Parameters
Gross Vehicle Weight When Driving
(kg)
27334
Axle Load
(kg)
(1st axle/2nd axle)13157/13763
Kinetic Paremeter
Engine Type
-
B6.7
Engine Net Power
(kw/r/min)
145
Driving Parameters
Max Travel Speed
(km/h)
41
Min Travel Speed
(km/h)
1.6
Swerve
Min Turning Radius
(m)
9.6
Max Gradeability
(%)
78
Min. Ground Clearance of Machine
(mm)
345
Approach Angle
(°)
20.5
Departure Angle
(°)
19.6
Braking Distance
(m)
9
Major Performance Parameters
Max. Rated Lifting Capacity
(t)
30
Min. Rated Range
(m)
3
Max. Load Moment of Basic Jib
(kN·m)
989.8
Radius of Gyration of Turntable Tail
(mm)
3823
Outrigger
Longitudinal
(m)
6.8
Horizontal
(m)
6.8
Max. Lifting Height
Basic Boom
(m)
10.2
Longest Main Boom
(m)
34.4
Longest Main Boom + Auxiliary Boom
(m)
42.2
Boom Length of Crane
Basic Boom
(m)
10.8
Longest Main Boom
(m)
35
Longest Main Boom + Auxiliary Boom + Extension
-
-
Working Speed
Max. Slewing Speed
(r/min)
2.5
Lifting Speed
Main Hoisting Mechanism
(m/min)
140
Auxiliary Hoisting Mechanism
(m/min)
140
