Startseite /Produkte/Artikulierender Boom-Truck/CRANE Howo /Isuzu 4x2 12m 14m 16m 18m Hydraulic 20m Telescopic Boom Crane Foldable Truck

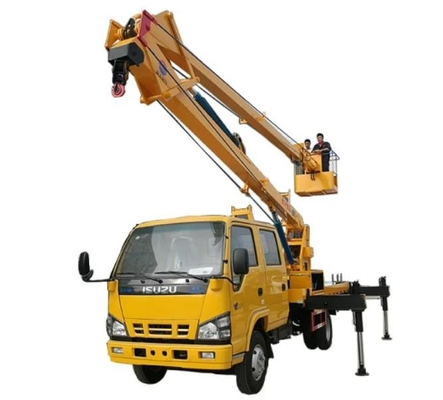

CRANE Howo /Isuzu 4x2 12m 14m 16m 18m Hydraulic 20m Telescopic Boom Crane Foldable Truck

1.0 Sets
MOQ
CRANE Howo /Isuzu 4x2 12m 14m 16m 18m Hydraulic 20m Telescopic Boom Crane Foldable Truck
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Showroom Location: None
Rated Loading Capacity: 2ton
Max. Lifting Height: 9.2m
Hydraulic Cylinder Brand: Parker
Hydraulic Pump Brand: Parker
Hydraulic Valve Brand: Parker
Engine Brand: Yunnei Dewei Engine
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Core Components: Motor, Pump, Gearbox, Engine
Weight (KG): 5835 kg
Model: Aerial work platform Truck Telescopic Boom Truck
Vehicle size (mm): 7970*2150*3240mm
Rated load of working bucket: 200kg
Maximum working height: 18.2m
Maximum working platform height: 16.5m
Maximum operating radius: 9.2m
Rated lifting weight: 2000kg
Engine model: D30TCIF1(Yunnei Dewei Engine)
Engine power: 5
Transmission: 125kw
Feature: TRUCK CRANE
Condition: Used
Warranty: 1 Year
UNIQUE SELLING POINT: High operating efficiency
Warranty of core components: 1 Year
Application: All
Rated Lifting Moment: 360
Marketing Type: Other
Grundinformation
Model Number: Aerial work platform Truck Telescopic Boom Truck, D30TCIF1(Yunnei Dewei Engine)
Zahlung und Versand AGB
Packaging Details: Bulk carrier
Supply Ability: 100 Set/Sets per Month
Produkt-Beschreibung
Product Description

Overall vehicle dimensions (l*w*h)

7970*2150*3240mm

Rated load of working bucket

200kg

Maximum working height

18.2m

Maximum working platform height

16.5m

Maximum operating radius

9.2m

Engine power

125kw

Rated lifting weight

2000kg

Lifting height at maximum lifting weight

1000kg

Lifting weight at maximum lifting height

7.9m

Total weight of the car

5835kg

Overall vehicle dimensions (l*w*h)

7970*2150*3240mm

Rated load of working bucket

200kg

Maximum working height

18.2m

Maximum working platform height

16.5m

Maximum operating radius

9.2m

Engine power

125kw

Rated lifting weight

2000kg

Lifting height at maximum lifting weight

1000kg

Lifting weight at maximum lifting height

7.9m

Total weight of the car

5835kg


Parameter

Model

Truck Crane

Vehicle size (mm)

10800/11030/11640×2370×3420/3480

Wheelbase (mm)

4500/4800

Engine model

WP4.1NQ190E61

Frame (mm)

250×65×8+4-800

Tire

10.00R20

Total weight (kg)

18000

Maximum lifting weight (kg)

12000

Maximum lifting height (mm)

36600

Basic arm length (mm)

8500

Number of working arm sections

 5
Outrigger type H outrigger
Rotation speed (r/min) 3

Number of leaf springs

10/12+9

Features: fuel economy, abundant power, standard auxiliary box to meet different working conditions;
Professional top design: straight-arm type hydraulic cylinder, 5-level telescopic boom, domestic famous brand crane, which can realize rapid lifting, and has the characteristics of high efficiency and energy saving;
Safe and reliable: The crane can rotate 360 degrees forwards and backwards. Fully automatic hydraulic outriggers, wide support legs, strong anti-rollover ability, equipped with a special operation room for construction machinery, easy to operate, safe, and wide field of vision.

Company Information

Tengfei development (Jining) Construction Machinery Co., Ltd(Soaring development machinery limited) founded in 2000 with more than 20 years' experience. Being famous in domestic and foreign countries, we concentrate on trailer and truck's research and development.
Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time.
