Startseite /Produkte/Teleskop-Lkw-Kran/Mobile Crane Hengwang 8 Ton 4x4 4x4 Truck Hydraulic Truck Crane Brick Straight Boom Pick Up Truck Crane

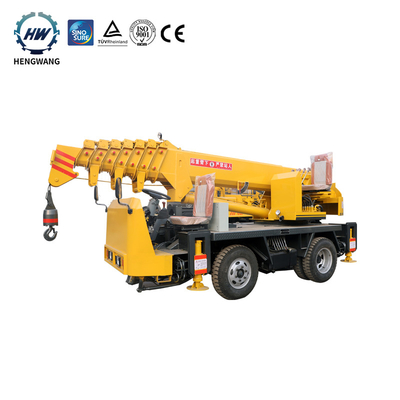

Mobile Crane Hengwang 8 Ton 4x4 4x4 Truck Hydraulic Truck Crane Brick Straight Boom Pick Up Truck Crane

1 Set
MOQ
$23,000.00(1 - 6 Sets) $20,000.00(>=7 Sets)
Preis
Mobile Crane Hengwang 8 Ton 4x4 4x4 Truck Hydraulic Truck Crane Brick Straight Boom Pick Up Truck Crane
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Feature: TRUCK CRANE
Showroom Location: None
Condition: New
Rated Loading Capacity: 8 Ton
Max. Lifting Height: Customized
Warranty: 1 Year
Hydraulic Cylinder Brand: HW
Hydraulic Pump Brand: HW
Hydraulic Valve Brand: HW
Engine Brand: HW
UNIQUE SELLING POINT: High operating efficiency
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG): 9000 kg
Product name: Mobile Crane
Type: Truck Mounted Crane Mobile Crane Truck
Brand: HengWang
Color: Customer Requirements
Capacity: 8-15 Ton Truck Crane
Boom type: Hydraulic Straight Arm
Keyword: Crane Truck Mobile Truck Crane Sizes
Grundinformation
Zahlung und Versand AGB
Packaging Details: Cranes are packed and transported in export standard containers.
Supply Ability: 100 Set/Sets per Month
Produkt-Beschreibung
Product Display
1.The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
2.The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
3.The control system is optimized by 8 patents; lifting, rotation, and luffing are easy andreliable.
4.The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
Product Description
Chassis model
Self-made 8 ton chassis
Engine model
Weichai 4100 engine
Maximum lifting weight
8T
Arm length
6 meters 6 knots
Weight
9T
Driving speed
70km/h
Tire specifications
825-16
Turntable
1.2m inner tooth
Winch
Main winch 8 tons, auxiliary winch 6 tons
Hydraulic outrigger
5 hydraulic outriggers single leg
Brake system
Hydraulic assist in the direction of the air brake
Gearbox
Dongfeng 145 gearbox

All self-made models can be customized for large telescopic frames, telescopic counterweights, and physical counterweights.
Chassis model
Self-made 10 ton chassis
Self-made 20 ton chassis
Engine model
Weichai 4102 engine
6108 engine（Optional）
Maximum lifting weight
10T
20T
Arm length
6 meters 6 knots or 5 meters 8knots
8 meters 5knots （Optional）
Weight
11.8T
25T
Driving speed
60km/h
70km/h
Tire specifications
825-20
900-20.1000-20（Optional）
Turntable
1.2m inner tooth
2.5R/min
Winch
Main winch 10 tons, auxiliary winch 6 tons
70m/min
Hydraulic outrigger
5 hydraulic outriggers single leg
4 hydraulic outriggers
Brake system
Hydraulic assist in the direction of the air brake
Hydraulic assist in the direction of the air brake
Gearbox
Dongfeng 145 gearbox
Wanliyang Transmission
All self-made models can be customized for large telescopic frames, telescopic counterweights, and physical counterweights.
Hengwang provides 8 tons truck crane with high quality truck crane accessories, 100% new brand crane. From 6 tons truck crane, 8tons truck crane, 10 tons truck crane, 12 tons truck crane, 16 tons truck crane, 20 tons truck crane, 25 tons truck crane and so on...



Car customization
The whole vehicle is welded with a large steel frame, which has good toughness and does not deform under heavy pressure. It can be equipped with flatbed or dump trucks.



Hydraulic outrigger
The whole machine has good hidden qualitative, and the compound action is smooth and smooth.





High-strength
manganese steel plate of the boom is light and heavy.



360 degree rotation
The slewing bearing is made of 50 manganese forging material, equipped with high and low speed neutral gears and brakes.
If you need a crane certificate, we will also provide you!
1.Luxury full cab and control cab with modern streamline style;
2.High power, low fuel consumption and noise meet the requirements of standard;
3.The walking board is fully covered, which is easy to work and repair on the vehicle;
4. The outrigger system adopts double-sided operation, which is convenient and practical;
Hengwang 8 ton 12 ton 4x4 mobile truck crane hydraulic brick straight boom pick up truck crane
Product Application
Recommend Products
Packing & Delivery
1.Adopt container transportation, and take reinforcement measures to prevent the machine from being damaged, so that customers receive the machine in good condition.
2.We have close ties with the top ten shipping companies in the world and can provide you with the best shipping quotations and the most timely follow-up information.
Hengwang 8 ton 12 ton 4x4 mobile truck crane hydraulic brick straight boom pick up truck crane
Company/ Factory
Jining Hengwang Construction Machinery Co., Ltd. is located in Jining City, Shandong Province. We are specialized in manufacturing road roller and excavator. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in the Middle East, Africa and South America. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Exhibition
*The company will participate in exhibitions in many countries every year, the exhibition will have professional sales and technical personnel explain the machine structure and use methods, and will actively answer your questions, can really do face to face communication, let you feel our professional in all aspects.
In addition, foreign customers are also welcome to visit our factories and machines.
FAQ
Q:Are you manufacture?
A: Yes, we are factory with more than 20 years of manufacturing experience.

Q:What is your terms of payment?
 A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.

Q:What is the warranty of our machine?
 A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:How do you make our business long-term and good relationship?
 A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE, IS09001.
