Truck parameters | ||||||

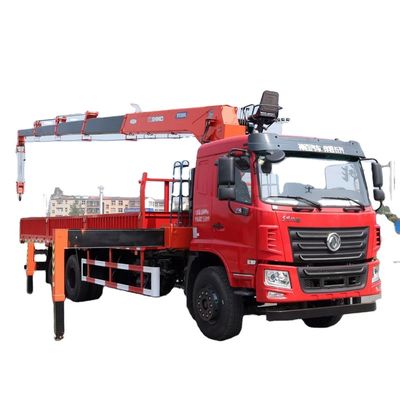

Product name | truck mounted crane | Crane Max.lifting load | 12ton | |||
Overall Dimension | 12000X2550X3800mm | Cargo box dimension | 8400X2450X600mm | |||
Drive type | 6*4 | Engine type/Emission standard | Diesel/Euro 2/Euro 3/Euro 4/Euro 5 | |||
Chassis brand name | dongfeng | Crane type | telescopic straight arm crane | |||
Transmission Type | Manual | Warranty | 1 year | |||
Lifting Height | 20.5m | MOQ | 1 unit | |||
Working radius | 18m | Price | According to your order quantity | |||
A/C | Optional | Port | Shanghai port or any other ports of China | |||
Shaft | 3 | wheelbase(mm) | 5700+1350mm | |||
Engine | Displacement(ml) | Power(Kw) | ||||
6245-60 | 6234 | 180 |
General Specification | ||||||
Name | Dongfeng 12 ton truck mounted crane | |||||
Applicable crane | 12 T | |||||
Gross weight | 25000kg | |||||
Curb weight | 14870kg | |||||
Dimension | 11950X2490X3650mm | |||||
Cargo body dimension | 8300X2400X550mm | |||||
Wheelbase | 5850+1350mm | |||||
Drive type | 6X4 | |||||
Max speed | 90km/h | |||||
Tire specification | 11.00R20 | |||||
Tire quantity | 10 | |||||
Cab | single cab, 2 crew seat, air conditioner, central lock, ABS, airbag seat, multi-function steering wheel | |||||
Engine Specification | ||||||
Engine manufacture | Yuchai | |||||
Emission standard | Euro 5 | |||||
Horse power | 240hp | |||||
Displacement | 7520ml | |||||
Crane Specification | ||||||
Brand | Max lifting capacity(Ton) | Working radius(m) | Max lifting height(m) | |||
HONTOP | 12 | 15.5 | 16.9 |
item | value |
Feature | TRUCK CRANE |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Malaysia, Kenya, Argentina, South Korea, Chile, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan |
Showroom Location | Philippines, Pakistan, South Korea, UAE, Colombia |
Condition | New |
Rated Loading Capacity | 9305 KG |
Max. Lifting Height | 20.5m |
Span | 4.5 |
Place of Origin | China |
Brand Name | Shenbai |
Certification | CCC.ISO9001 |
Warranty | 1 Year |
Field installation, commissioning and training, Video technical support, Online support, Free spare parts | |
Hydraulic Cylinder Brand | Shenbai |
Hydraulic Pump Brand | Shenbai |
Hydraulic Valve Brand | Shenbai |
Engine Brand | DONGFENG |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Weight (KG) | 13000kg |
